Details

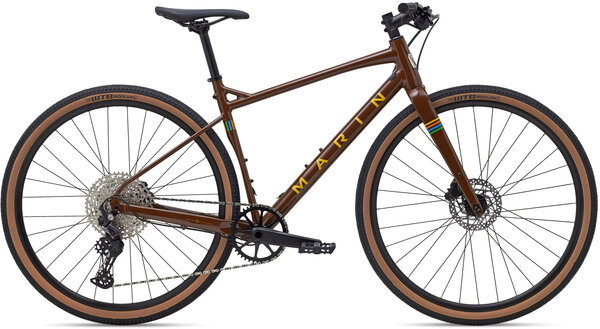

The DSX is a flat bar gravel bike with Series 3 aluminum frames and a carbon fork with large tire clearance. It offers low standover, hydraulic disc brakes, and a reliable 1x drivetrain, combining mountain bike sensibilities in a flat bar package capable of fast commutes, long Saturday adventures spanning pavement and light singletrack, and all-day gravel events.
Series 3 Frame
The DSX features a butted and formed Series 3 6061 aluminum frame with internal routing, 142x12mm thru-axles, flat mount disc brakes, and rack and fender eyelets.
Tire Clearance
The DSX comes stock with 700x45mm tires, with room for 29x2.1" knobbies.
Disc Brakes
The DSX features the latest flat mount disc brake standard for smooth, controlled stopping in all conditions with minimal maintenance.
Dropper Post Routing
Dropper posts are quickly becoming standard fare for gravel racers and riders that spend significant time on rough surfaces, and the DSX features internal dropper post routing for easy upgrades.
- Series 3 aluminum frame
- Full carbon fork
- Shimano Deore 1x12 drivetrain
- Shimano MT201 hydraulic disc brakes
Specs
Frame | Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |
---|---|
Fork | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
Headset | FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8" x 1 1/2" |
Rims/Wheels | Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Ready |
Hubs | Shimano Forged Aluminum, Microspline, Centerlock, 32H |
Tires | WTB Riddler, 700c x 45mm |
Crankset | Forged Aluminum |
Chainrings | 42T Steel Narrow Wide |
Bottom Bracket | Sealed Outboard Bearing |
Chain | KMC X12 |
Rear Derailleur | Shimano Deore 12-Speed |
Cassette/Rear Cogs | Shimano Deore 12-Speed, 10-51T |
Shifters | Shimano Deore 12-Speed |
Handlebars | Marin MiniRiser |
Tape/Grips | Marin MTB |
Stem | Marin 3D Forged Alloy |
Brake Levers | Shimao Hydraulic |
Brakes | Shimano MT201/UR300 Flat Mount Hydraulic Disc, 160mm Rotors |
Pedals | Commute Platform |
Saddle | Marin DSX |
Seat Post | Marin Alloy |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Brown/Yellow / Small | 843346108081 | 732423002 | |
Brown/Yellow / Medium | 843346108098 | 732423003 | |
Brown/Yellow / Large | 843346108104 | 732423004 | 210000010018 |
Brown/Yellow / X-Large | 843346108111 | 732423005 |
