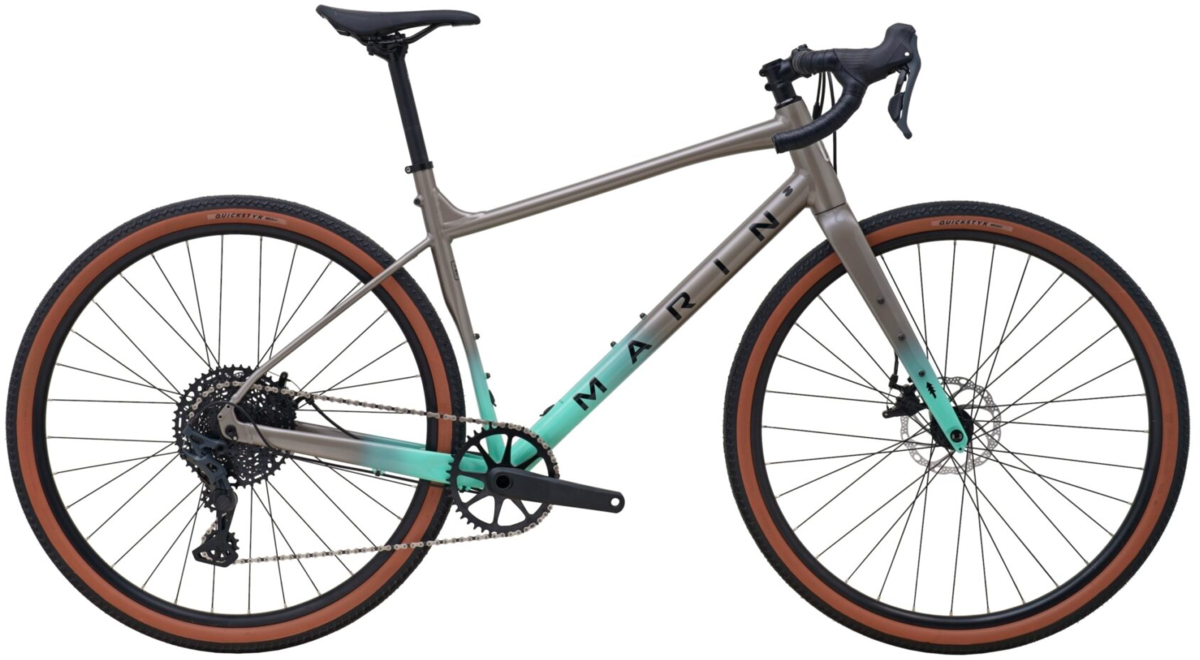

Marin Gestalt X10
Details
The Gestalt X is our hard-charging, rough-and-rowdy take on what gravel and adventure bikes can do. Break off the fire road, down the singletrack and charge further and faster than ever before. All while keeping the versatility, challenge and fun of a bike with drop handlebars.
The Gestalt X is built with a longer-than-the-usual wheelbase, slack-like-your-mountain-bike head angle, low-slung frame, wide bars, short stem, big and chunky tires with room for up to 50mm on 700c or 54mm with a 650b wheelset.
The Gestalt X10 means extra fun at an extra awesome price. Pick one up and you’ll be riding our MTB-inspired, Series 3 aluminum Gestalt X frame and a whole heap of tough and capable kit, including a 10-speed microSHIFT groupset, cushy and grippy 44mm wide Vee Tire Co tires, Tektro disc brakes and plenty of kick-ass Marin components.
| FRAME SIZE | SMALL | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|---|
| STACK (mm) | 547.6 | 566 | 589.1 | 621.5 |
| REACH (mm) | 400 | 420 | 440 | 460 |
| HEADTUBE ANGLE | 67.5° | 67.5° | 67.5° | 67.5° |
| HEADTUBE LENGTH (mm) | 130 | 150 | 175 | 210 |
| SEATTUBE ANGLE | 75° | 74° | 74° | 74° |
| SEATTUBE LENGTH (mm) | 460 | 485 | 505 | 530 |
| TOPTUBE EFFECTIVE (mm) | 546.7 | 582.3 | 608.9 | 638.2 |
| BB HEIGHT (mm) | 282.5 | 282.5 | 282.5 | 282.5 |
| BB DROP (REAR/FRONT) (mm) | 80 | 80 | 80 | 80 |
| CHAINSTAY (mm) | 425 | 425 | 425 | 425 |
| WHEELBASE (mm) | 1065.2 | 1092.8 | 1122.4 | 1155.6 |
| STANDOVER HEIGHT (mm) | 678.6 | 687.7 | 708.6 | 734.5 |
| FORK OFFSET (mm) | 50 | 50 | 50 | 50 |
| SEATPOST DIAMETER (mm) | 27.2 | 27.2 | 27.2 | 27.2 |
| HANDLEBAR WIDTH (mm) | 440 | 460 | 480 | 480 |
| STEM LENGTH (mm) | 50 | 50 | 50 | 50 |
| CRANK LENGTH (mm) | 170 | 170 | 175 | 175 |
Specs
| Frame | Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |
|---|---|
| Fork | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| Rims | Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific |
| Hubs | Forged Aluminum Alloy, Disc, 32H |
| Spokes | 14g Black Stainless Steel |
| Tires | Vee Tire Co., Rocket Man, 700x45, Tubeless Compatible |
| Bottom Bracket | External Sealed Cartridge Bearings |
| Crankset | Forged Alloy 1x10, Hollow CrMo Spindle, Narrow Wide 42T |
| Shifters | microSHIFT Advent X 10-Speed |
| Rear Derailleur | microSHIFT Advent X 10-Speed Wide-Range |
| Cassette/Freewheel | SunRace 10-Speed, 11-51T |
| Chain | KMC X10 |
| Brakes | Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor |
| Brake Levers | MicroSHIFT Advent X |
| Handlebars | Marin Butted Alloy, Compact 16º Flared Drop |
| Tape/Grips | Marin Shock Absorbing Perforated Tape |
| Stem | Marin 3D Forged Alloy |
| Headset | FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
| Seatpost | Marin Alloy, 27.2mm |
| Saddle | Marin Beyond Road Concept |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Grey Orange / Small / 700c | 843346132765 | 739818001 | |
| Grey Orange / Medium / 700c | 843346132772 | 739818002 | 210000012710 |
| Grey Orange / Large / 700c | 843346132789 | 739818003 | |
| Grey Orange / X-Large / 700c | 843346132796 | 739818004 |
